Application Type
Patents
Application SubType
PCT
(10) Registration Number and Date
Status
Filed-Formality Examination
(180) Expiration Date
(20) Filing Number and Date
PG P/2023/000022 2021.12.14
(40) Publication Number and Date
(86) PCT Filing Number and Date
(87) PCT Publication Number and Date
(85) National Entry Date
(30) Priority Details
FR 2013388
2020.12.17
(51) IPC Classes
(72) Inventor
(EN) COMBRINCK, Stephanus Johannes Marais : 1 Lavelle CourtClontarf, Queensland 4019 (AU)
(EN) DUMANOIR, Lou : 81 rue des Poissonniers75018 Paris (FR)
(EN) TROUSSELLE, Raphaël : 64 bis avenue Raymond-Poincaré75016 Paris (FR)
(74) Representative Name
(EN) VAI IP & COMMERCIAL : Level 1 Harbourside West, Stanley Esplanade
(54) Title
(EN) METHOD FOR INSTALLING A SET OF ELECTRONIC DETONATORS AND ASSOCIATED IGNITION METHOD
(57) Abstract
(EN)

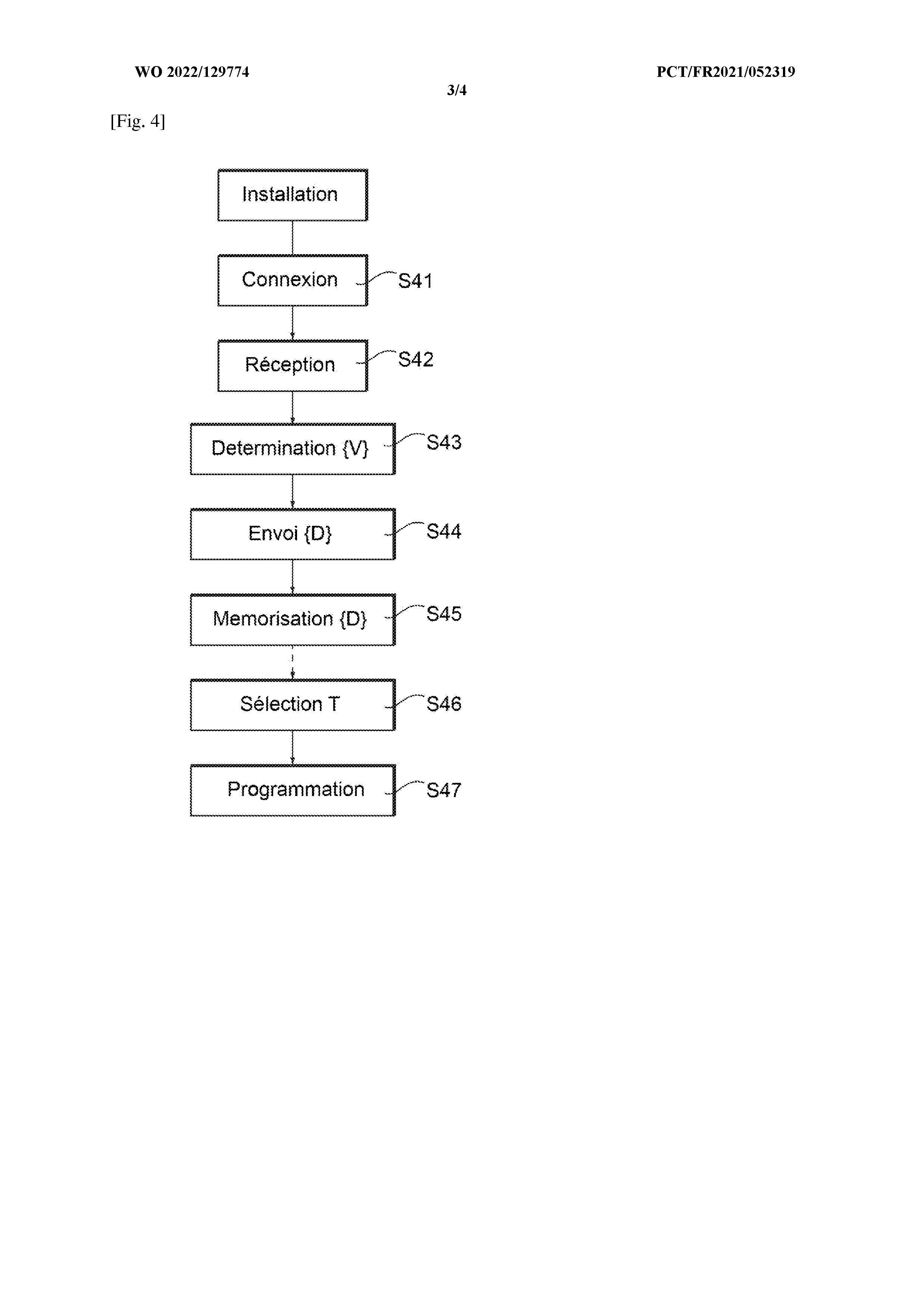

A method for installing a set of electronic detonators into blast holes of a workface comprises the following steps: - connection (S41) of the detonators, loaded into the blast holes, to a mobile test device; - receipt (S42), by the mobile test device, of a message sent by each detonator; - determination (S43), using this message, of a set of values {V} representative of the total number of detonators connected to the mobile test device; - sending (S44), to one or more detonators of the set, a set of data {D} to be stored comprising the set of values {V} representative of the total number of detonators connected to the mobile test device; and - storage (S45) of the set of data {D} in recording means of one or more detonators of the set of electronic detonators. Use for later verifying the connection of the detonators before ignition.

A method for installing a set of electronic detonators into blast holes of a workface comprises the following steps: - connection (S41) of the detonators, loaded into the blast holes, to a mobile test device; - receipt (S42), by the mobile test device, of a message sent by each detonator; - determination (S43), using this message, of a set of values {V} representative of the total number of detonators connected to the mobile test device; - sending (S44), to one or more detonators of the set, a set of data {D} to be stored comprising the set of values {V} representative of the total number of detonators connected to the mobile test device; and - storage (S45) of the set of data {D} in recording means of one or more detonators of the set of electronic detonators. Use for later verifying the connection of the detonators before ignition.

(58) Citations
Document Type Date Action
Event NameDateStatus
Filing2021.12.14Filed
PCT National Phase Entry2021.12.14PCT National Phase
Filing2023.10.30Filed
